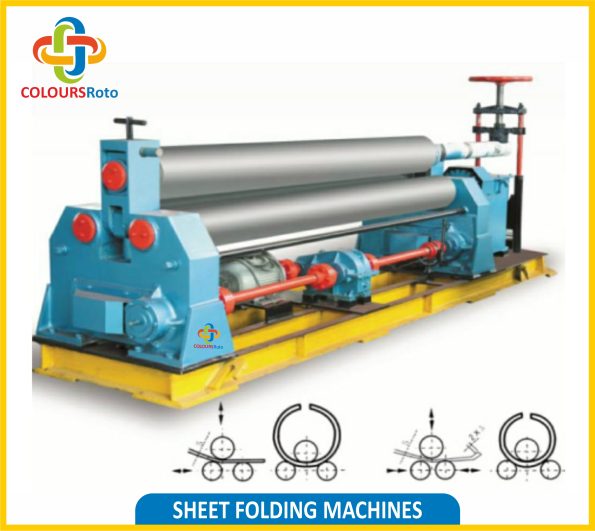

The plate rolling machine is a symmetrical adjustable three-axis rolling machine. This equipment is a special equipment specially used for the production of plate rolling roll blanks in the plate making industry. Both the lifting of the upper shaft and the rotation of the lower shaft are mechanically driven, and automatic pneumatic lifting is used when the upper shaft unloads the plate roller.
Product Introduction
The plate rolling machine is a symmetrical adjustable three-axis rolling machine. This equipment is a special equipment specially used for the production of plate rolling roll blanks in the plate making industry. Both the lifting of the upper shaft and the rotation of the lower shaft are mechanically driven, and automatic pneumatic lifting is used when the upper shaft unloads the plate roller.
The feature is: it can be rolled and pre-bent.
This machine series adopts electrical centralized control, which is a kind of plate rolling equipment with safe operation, simple operation, convenient maintenance, economical, practical and humanized.
Main technical parameters
1.Max. bending thickness: 6mm/8mm
2.Max. bending width: 900mm/1500mm
3.Min. Cylinder Diameter: 110mm/170mm
4.Bending material yielding strength: ≤245Mpa
5.Rolling Speed: 8.2m/min
6.Main motor power: 3KW
7.Ellipse degree (after material pre-bending): ≤1.5mm
8.Dimension: 2100mm(2700mm) x 690mm x 850mm (LxWxH)
Machine maintenance
(1) The machine must work under the condition of normal operation and good lubrication, keep it clean and strictly implement the lubrication system.
(2) Formulate regular maintenance system.
(3) When all wearing parts are excessively worn or lose their original performance requirements, the parts should be replaced in time, and any damage should be repaired in time.
(4) During use, attention should be paid to the temperature of each part. The temperature of sliding bearings should not exceed 75 degrees, and the temperature of rolling bearings should not exceed 60 degrees.
