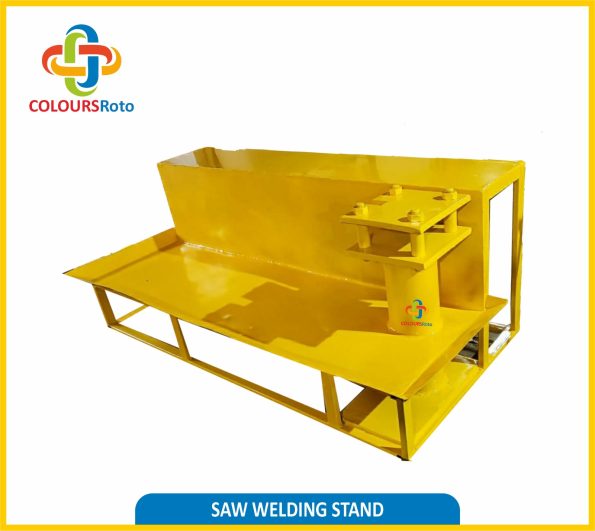

Saw Welding Stand
Standard Equipment Consist of
| Power Source | 01 No |
| Submerged arc welding head | 1 Set |
| Fabrication track 2Mtrs(for carriage mounted only) | 1 No |
| Welding Cable | 10 Mtr |
| Earthing Cable | 5 Mtr |
| Control Cable | 10 Mtr |
1200amp Diode based, Submerged arc welding machine with arriage mounted welding head. Suitable for 3-ph, 415volt 50Hz. Specially designed for heavy duty and continuous welding operation. Other technical details are given in enclosed catalogue.
Reviews (0)
Related Products
| Oven Capacity | 50 Kg |
| Oven Type | Cabinet Ovens |
| Air-Flow Direction | Vertical Down Airflow |
| Country of Origin | Made in India |
| Usage/Application | Drying Purpose |
| Power Source | Electric |
| Material | Mild Steel |
| Door Type | Single Door |
We are engaged in offering a wide range of 50 Kg welding electrode drying oven to our clients. Our range of all products is widely appreciated by our clients.
Unwinder and Rewinder. Cantilever turret disk-type whirling stand with doublearrn 8 double statfon, Web material rolled with air shaft with safely chuckAutomatic web rall exchange With horizontal cutting device in obverse orreverse direction.With press roll device. Ultrasonic detection systern af coidiameterPrinting: Hioh precision and no backlash servo driver (Japan).shafHesspruematic cone .Horizontal vertical register system, also with pre.register andvertical pressing mecharismm. ink is passed by ink transfer roll.reduce the loss ofwaste and improve precision. Dactor blade plavs with double-axis, drive byindependent motor, also quick-changing. Adjustable closed blade in threesections. Loading and ink supplying trolley.
Orver: Intellipent saparatelv6 hioh efficiency oven svstem. Low consumiotioroven with high air volume and pressure, multi-return and whirlwind distributetTouch screen control and surveillance systerm. The perfect security systermihelas watching working conditlon and estimate machine bug.
Control: Machine is logically controlled by PLC, servo drive tension control. Allquide rolls are oiled together, to keep rolls, high flexibility.
Product specifications
| Effective printing width | 1000mm |
| Maximum width of substrate | 1050mm |
| Mechanical maximum speed | 400 m/min |
| Maximum diameter | Φ600-800mm |
| Inner diameter | Φ76mm |
| Printing plate roller diameter | Φ120~Φ360mm |
| Registration accuracy | ±0.1mm |
| Tension control range | 20~50kg/Full Width |
| Oven heating power | 240Kw |
| Total power | 300Kw |
| Machine weight | 40000kg |
| External dimensions | 20000x4000x3800mm |
| Packaging Size | 25 Kg |
| Packaging | Bag |
| Features | Useful of Welding Wire |
| Usage/Application | Industrial |
With through understanding of the relevant industry, we are offering a wide range of Saw Welding Flux. This welding flux is processed using optimum quality raw material and advanced technology under the surveillance of our vendors dexterous team of professionals. In tune with different needs and necessities of our copious clients, we offer this welding flux is numerous specifications. Our offered welding flux is widely used for welding purposes.
