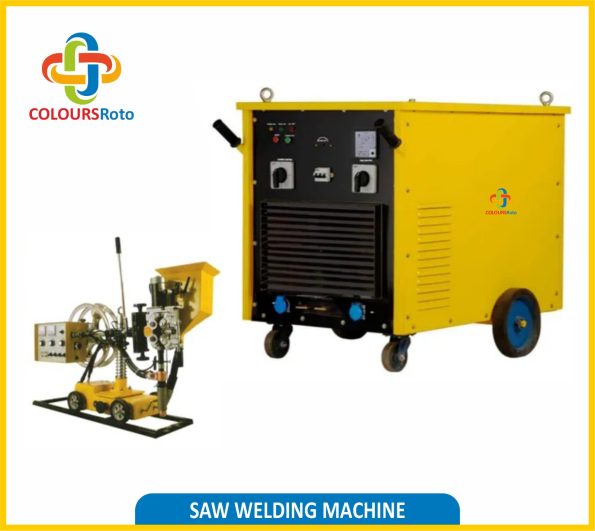

The steel base submerge arc welding machine is a powerful tool designed specifically for welding steel base materials. This machine utilizes a submerged arc welding process, which involves the creation of an arc between the electrode rod and the workpiece. The arc is then submerged in a layer of granulated flux, which helps to shield the welding area from contaminants. The machine also features a sturdy steel base, which provides stability and helps to reduce vibrations, ensuring a smooth and accurate welding experience.
Product specification
In terms of specification, the steel base submerge arc welding machine typically features a high-capacity wire feeder, which can hold up to several hundred pounds of wire. The machine also utilizes a powerful welding torch, which is capable of withstanding extreme temperatures and harsh environments. Additionally, the machine is often equipped with a range of safety features, including thermal overload protection and an automatic shutdown function in the event of a system failure.
| Model | MZ-630 |
| Power voltage/frequency | 380V/50HZ |
| Rated input capacity | 48.3KVA |
| Phase number | 3 |
| Rated Duty cycle | 60% |
| No load voltage | 76V |
| Welding current | 120-630A |
| Wire diameter | 2-3mm |
| Wire feed speed | 30-120cm/min |
| Welding speed | 15-70m/h |
| Tractor weight | 60kg |
| Head lateral bevel angle | 30° |
| Vertical adjust range | 85mm |
| Level adjustment range | 60mm |
| Vertical adjustment angle | ±180° |
| Machine weight | 3200Kg |
| Dimension | 2350 x 700 x 1400(mm) |
