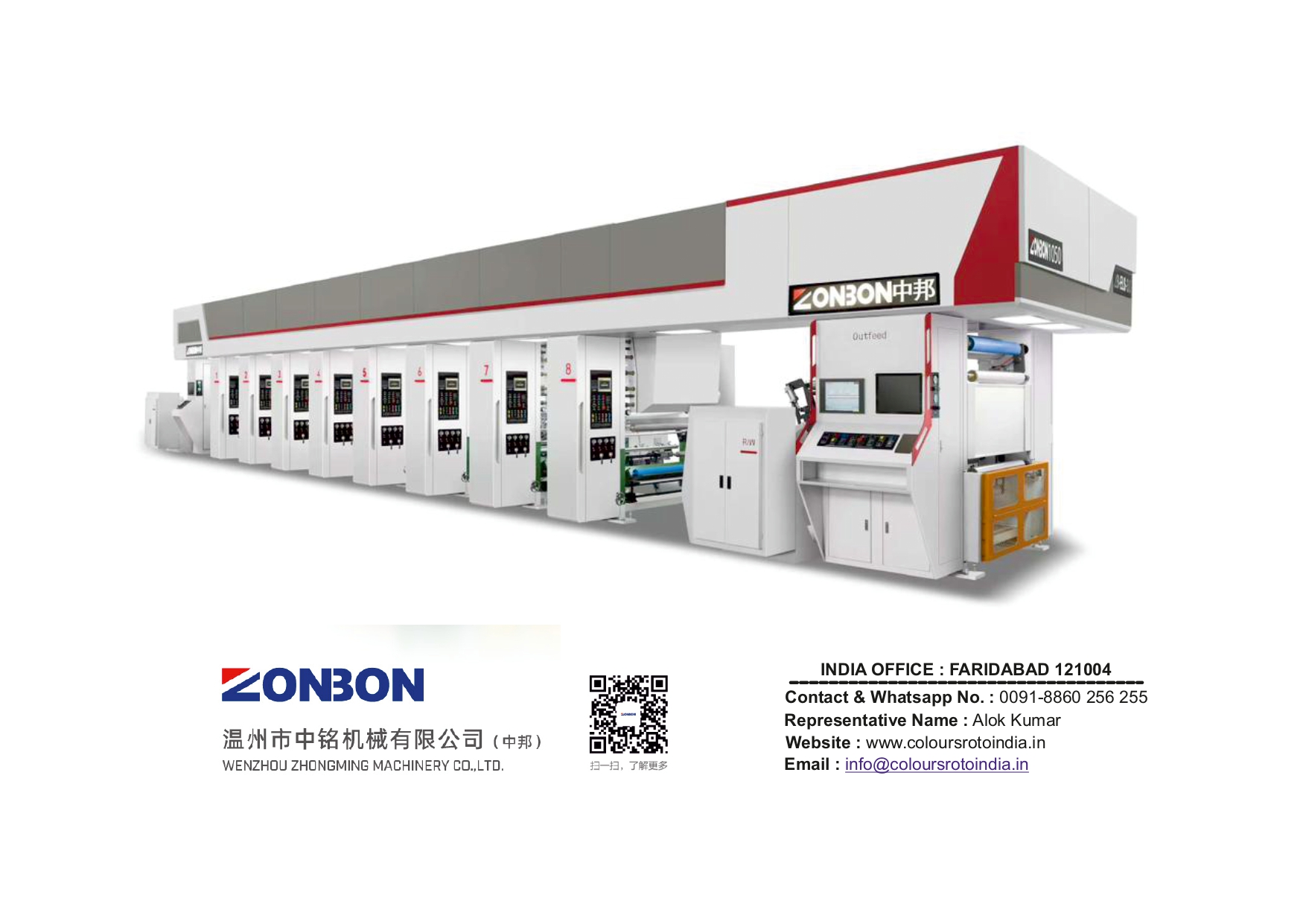

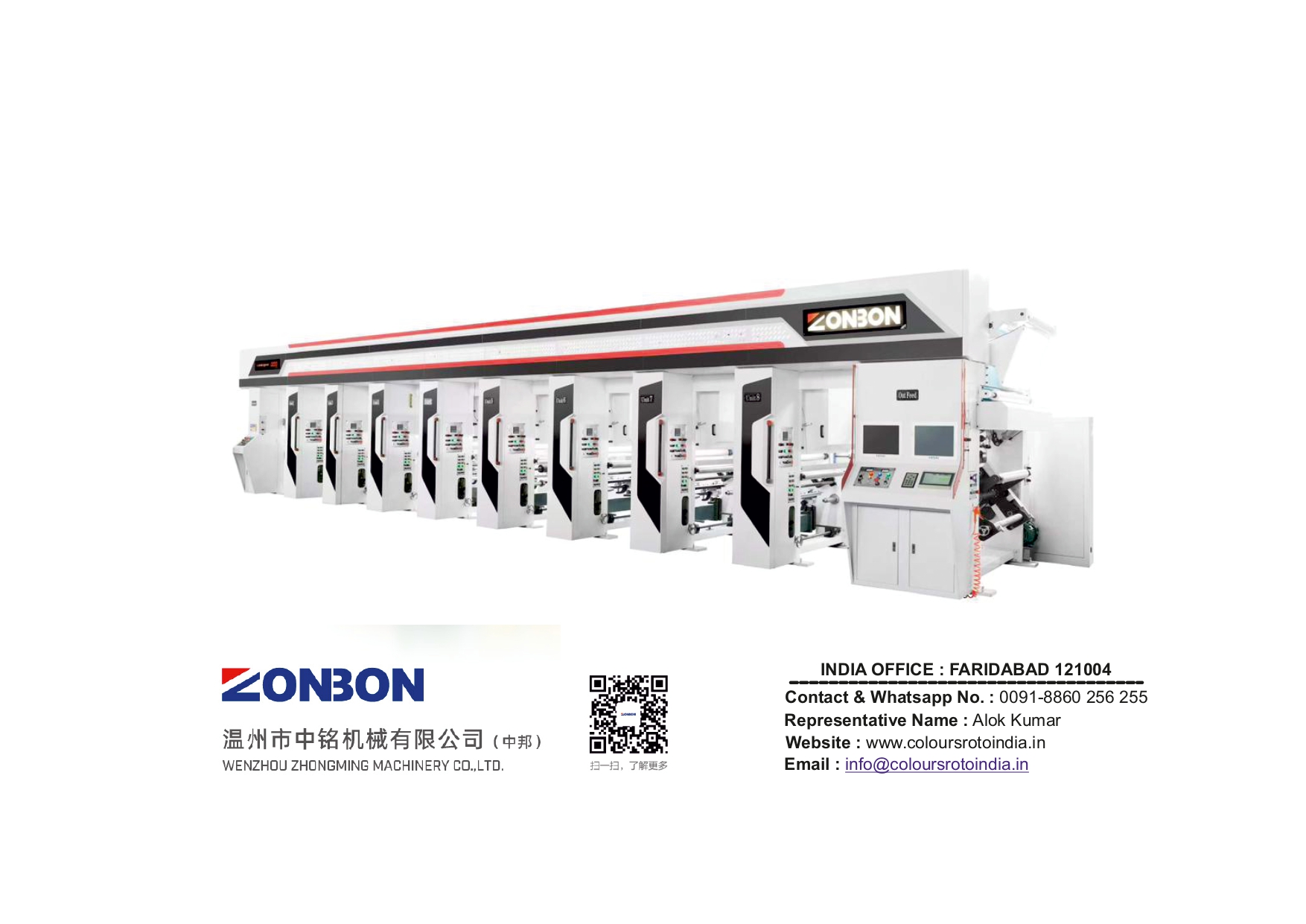

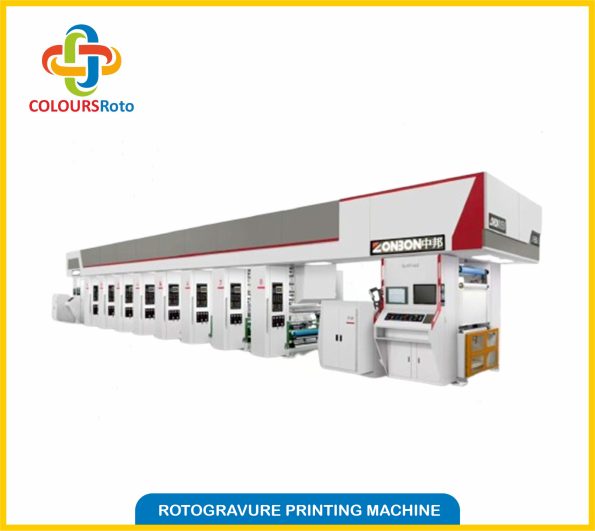

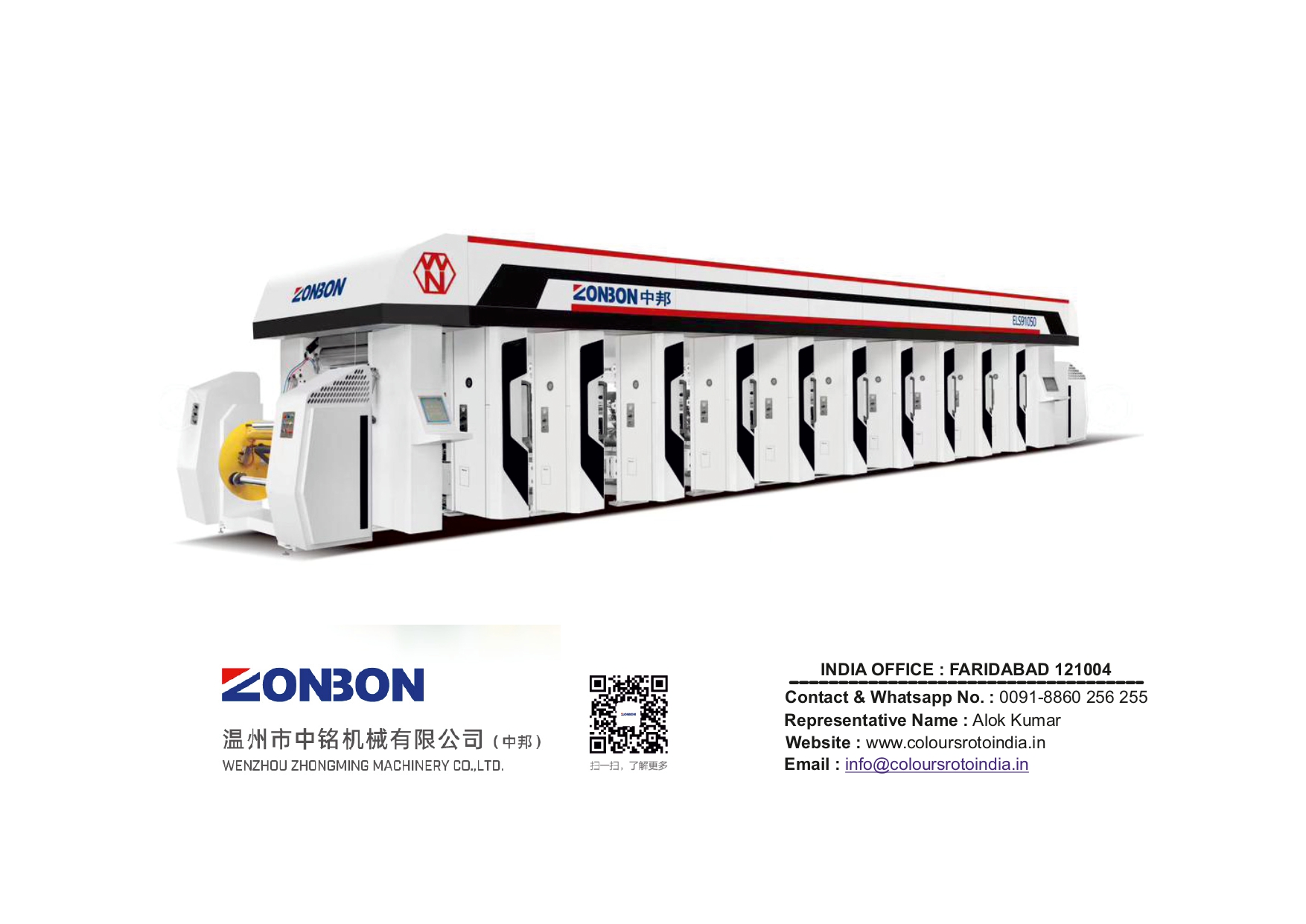

Rotogravure Printing Machine
Unwinder and Rewinder. Cantilever turret disk-type whirling stand with doublearrn 8 double statfon, Web material rolled with air shaft with safely chuckAutomatic web rall exchange With horizontal cutting device in obverse orreverse direction.With press roll device. Ultrasonic detection systern af coidiameterPrinting: Hioh precision and no backlash servo driver (Japan).shafHesspruematic cone .Horizontal vertical register system, also with pre.register andvertical pressing mecharismm. ink is passed by ink transfer roll.reduce the loss ofwaste and improve precision. Dactor blade plavs with double-axis, drive byindependent motor, also quick-changing. Adjustable closed blade in threesections. Loading and ink supplying trolley.
Orver: Intellipent saparatelv6 hioh efficiency oven svstem. Low consumiotioroven with high air volume and pressure, multi-return and whirlwind distributetTouch screen control and surveillance systerm. The perfect security systermihelas watching working conditlon and estimate machine bug.
Control: Machine is logically controlled by PLC, servo drive tension control. Allquide rolls are oiled together, to keep rolls, high flexibility.
Product specifications
| Effective printing width | 1000mm |
| Maximum width of substrate | 1050mm |
| Mechanical maximum speed | 400 m/min |
| Maximum diameter | Φ600-800mm |
| Inner diameter | Φ76mm |
| Printing plate roller diameter | Φ120~Φ360mm |
| Registration accuracy | ±0.1mm |
| Tension control range | 20~50kg/Full Width |
| Oven heating power | 240Kw |
| Total power | 300Kw |
| Machine weight | 40000kg |
| External dimensions | 20000x4000x3800mm |
Description
Reviews (0)
Related Products
| Packaging Size | 25 Kg |
| Packaging | Bag |
| Features | Useful of Welding Wire |
| Usage/Application | Industrial |

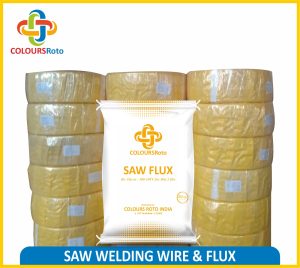

With through understanding of the relevant industry, we are offering a wide range of Saw Welding Flux. This welding flux is processed using optimum quality raw material and advanced technology under the surveillance of our vendors dexterous team of professionals. In tune with different needs and necessities of our copious clients, we offer this welding flux is numerous specifications. Our offered welding flux is widely used for welding purposes.
